Spotify is a scalable music streaming platform that allows users to stream songs, podcasts, and playlists in real time. The system is designed to deliver high-quality audio with low latency while supporting millions of concurrent users.

• Learn how Spotify handles music streaming, playlist management, recommendations, and offline playback at scale.
• Understand the system architecture, database design, APIs, scalability techniques, and performance optimizations used to build a reliable music streaming platform.

1. Problem Statement

We need to design a Spotify-like music streaming system that allows users to stream songs and podcasts in real time while supporting millions of concurrent users. The system should be scalable, highly available, and provide a seamless listening experience with low latency.

• Users should be able to search, stream, download (offline mode), and manage playlists efficiently.
• The system should provide personalized recommendations, synchronize playback across devices, and ensure uninterrupted music streaming.
• The design should focus on scalability, fault tolerance, content delivery, data storage, and overall system performance.

2. System Requirements

Before designing the system, we need to identify its functional and non-functional requirements. These requirements define the expected features and quality attributes of the Spotify platform.

Functional Requirements

Functional requirements describe the core features that the system must support.

• Users should be able to register, log in, and authenticate securely.
• Users should be able to search and stream songs and podcasts.
• Users should be able to create, update, and manage playlists.
• Users should be able to like songs and follow artists or playlists.
• Users should be able to download songs for offline listening (Premium users).
• The system should generate personalized music recommendations.
• Users should be able to synchronize playback across multiple devices.

Non-Functional Requirements

Non-functional requirements define how well the system should perform under different conditions.

• Availability: The platform should remain available with minimal downtime.
• Scalability: It should support millions of concurrent users and streaming requests.
• Reliability: Music playback and user data should be reliable without interruptions.
• Low Latency: Songs should start playing with minimal delay.
• Performance: Search results and playlist loading should be fast.
• Security: User authentication, authorization, and data transmission should be secure.

3. Capacity Estimation

Before designing the architecture, we need to estimate the expected traffic, storage, bandwidth, and infrastructure requirements. These estimations help us choose the right databases, CDN, cache, and scaling strategy.

Assumptions

3.1 Storage Estimation

Assume the platform stores 100 million songs, and the average song size is 5 MB.

Total Storage = 100 Million × 5 MB
= 500,000,000 MB
= 500 TB

Estimated Storage: 500 TB (excluding podcasts and album artwork).

3.2 Bandwidth Estimation

Assume Spotify serves 2 billion song streams per day.

Daily Streaming Data = 2 Billion × 5 MB
= 10 PB/day

Bandwidth = 10 PB / 86,400 seconds
≈ 926 Gb/s

Estimated Bandwidth: ~926 Gb/s

3.3 Server Estimation

Assume one streaming server can handle 2.5 million concurrent streams.

Number of Servers= 250 Million / 2.5 Million
= 100 Servers

Estimated Streaming Servers: 100 Servers (excluding CDN edge servers).

3.4 Requests Per Second (RPS) Estimation

Assume Spotify processes 2 billion streaming requests per day.

Requests Per Second (RPS)= 2 Billion / 86,400
≈ 23,148 requests/second
≈ 23K RPS

Estimated Traffic: The system should be capable of handling approximately 23K requests per second, while supporting significantly higher traffic during peak hours.

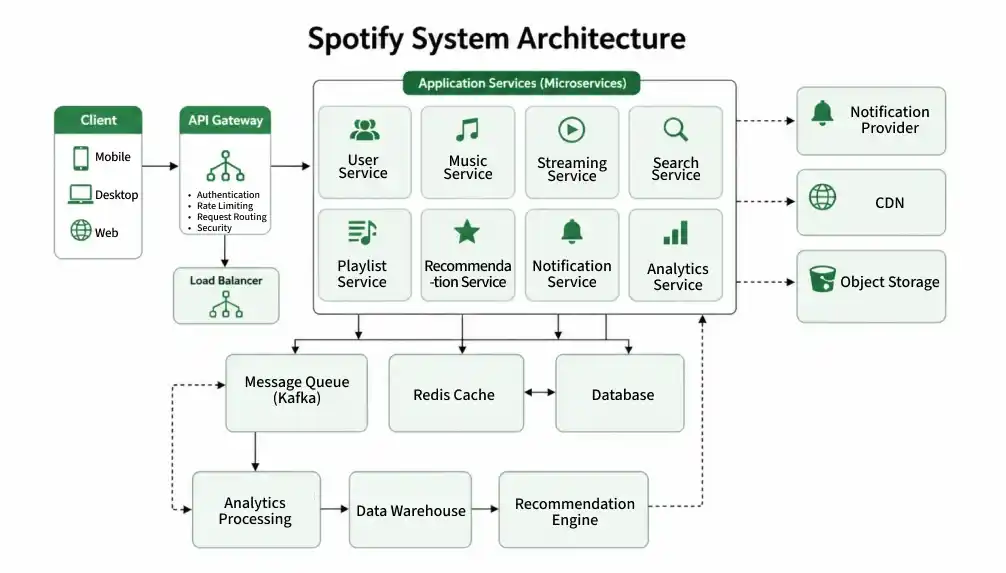

4. High Level Design

The High-Level Design (HLD) describes the overall architecture of the Spotify system and explains how different components work together to provide a scalable, reliable, and low-latency music streaming service.

Core Components

• Client: Represents the Spotify application running on mobile, desktop, and web devices. It allows users to search songs, stream music, create playlists, follow artists, and manage their accounts.
• API Gateway: Acts as the single entry point for client requests. It handles authentication, security checks, request routing, and communication with backend services.
• Load Balancer: Distributes incoming requests across multiple application servers to prevent overload and improve system availability.
• User Service: Manages user-related operations such as registration, login, profile management, subscriptions, and user preferences.
• Music Service: Manages the music catalog, including songs, albums, artists, and related metadata.
• Streaming Service: Handles real-time music playback by retrieving audio files from storage and delivering them to users with low latency.
• Search Service: Provides fast search functionality for songs, artists, albums, and playlists using optimized search indexes.
• Playlist Service: Manages user playlists and supports operations such as creating, updating, deleting, and organizing playlists.
• Recommendation Service: Generates personalized recommendations based on listening history, preferences, liked songs, and user behavior.
• Notification Service: Sends notifications related to new releases, playlist updates, recommendations, subscription changes, and other activities.
• Analytics Service: Collects and processes user activity such as song plays, searches, skips, and listening patterns for analytics and recommendation systems.
• Message Queue: Enables asynchronous processing of user activities and system events, helping the system handle high traffic and traffic spikes reliably.
• Redis Cache: Stores frequently accessed data such as user sessions, trending songs, popular playlists, and song metadata to reduce database load and improve response time.
• Database: Stores user information, subscription details, playlist metadata, song metadata, listening history, and other structured application data.
• Object Storage: Stores large media files such as audio tracks, podcasts, and album images outside the primary database.
• CDN: Caches and delivers audio files and other media from locations closer to users, reducing latency and improving streaming performance.

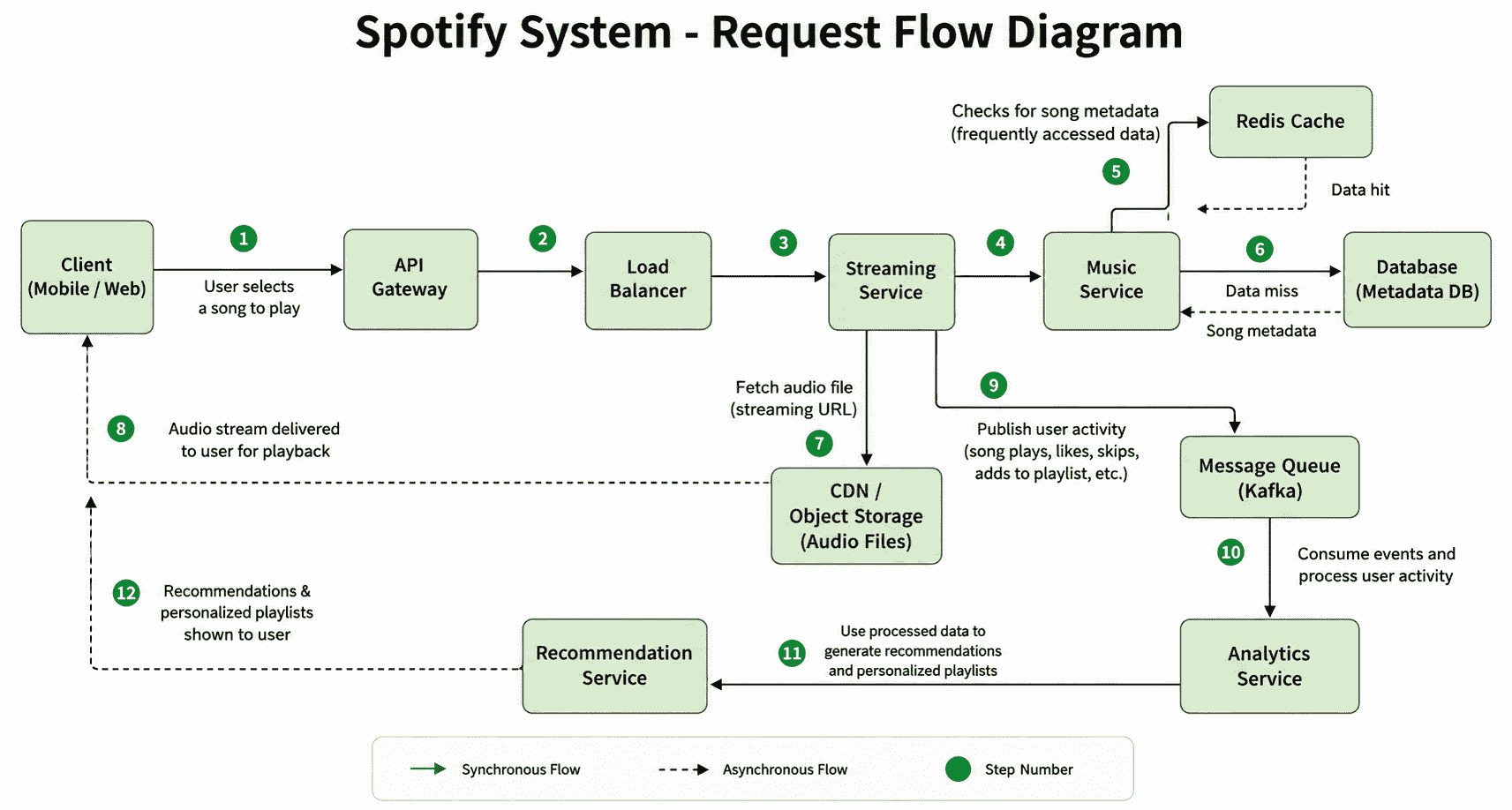

Request Flow

After explaining the components, describe how a song request travels through the system.

• User selects a song to play.
• The request reaches the API Gateway.
• The Load Balancer forwards the request to a Streaming Service instance.
• The Streaming Service validates the request and fetches song metadata from the Music Service.
• The Music Service checks the Redis Cache for frequently accessed song information.
• If the data is not available in the cache, the Music Service retrieves the song metadata from the Database.
• The Streaming Service fetches the audio file from the CDN or Object Storage.
• The audio stream is delivered to the user's device for playback.
• The user's listening activity such as song plays, likes, and skips is published to the Message Queue (Kafka).
• The Analytics Service consumes these events and processes user activity data for insights and improving recommendations.
• The Recommendation Service uses this processed data to generate personalized playlists and song suggestions.

Data Flow

The data flow shows how music data and user activity move through different components of the Spotify system after a user performs an action.

• The client sends a request to the API Gateway, which authenticates and forwards it to the Streaming Service.
• The Streaming Service communicates with the Music Service to retrieve song metadata and playback information.
• The Music Service checks the Redis Cache for frequently accessed data such as popular songs, trending tracks, and recently played music.
• If the required data is unavailable in the cache, the Music Service retrieves it from the Database.
• The Streaming Service fetches audio files from Object Storage through the CDN, which delivers music content with low latency.
• User activities such as song plays, searches, likes, and playlist updates are published to the Message Queue (Kafka) for asynchronous processing.
• The Analytics Service processes these events and stores user behavior data for generating insights.
• The Recommendation Service analyzes listening history and user preferences to provide personalized music recommendations.
• After successful playback, the listening history and user preferences are updated in the Database and synchronized across all user devices.

5. Technology Stack

Before designing the data model, it is helpful to identify the technologies used by different components of the Spotify system. The following technology stack is commonly used to build a scalable and reliable music streaming platform.

6. Data Model Design

The data model defines how Spotify stores and manages users, songs, playlists, listening history, and media files. A well-designed schema ensures efficient data storage, fast retrieval, and supports scalability as the number of users and songs grows.

• Identify the core entities required for music streaming and user interactions.
• Define relationships between entities to maintain data consistency.
• Select the appropriate database model based on scalability and performance requirements.

Core Entities

The Spotify system consists of the following core entities:

• User: Stores user profile information, subscription details, preferences, and account-related data.
• Song: Stores song information such as title, artist, album, duration, genre, and audio file metadata.
• Artist: Represents music creators and stores artist-related information.
• Album: Stores album details such as album name, release date, and associated songs.
• Playlist: Represents user-created playlists containing a collection of songs.
• Playlist Song: Maintains the relationship between playlists and songs.
• Listening History: Stores user activity data such as played songs, timestamps, and listening patterns.
• Subscription: Stores user subscription plans, payment status, and premium account details.
• Media: Stores metadata of audio files, album covers, and podcast files.

Database Selection

A combination of SQL and NoSQL databases can be used depending on system requirements.

• SQL Database is suitable for storing structured data such as user accounts, subscriptions, playlists, artists, albums, and song metadata because these entities require strong consistency and relationships.
• NoSQL Database is better suited for storing large-scale user activity data such as listening history, song interactions, and recommendation data because it provides high scalability and fast write operations.
• Object Storage should be used for storing large media files such as audio tracks, podcasts, and album images, while only their metadata and references are maintained in the database.

7. API Design

The API design defines how the client communicates with the backend services to perform operations such as authentication, music streaming, searching songs, playlist management, and user interactions.

• Design REST APIs that are simple, scalable, and easy to consume.
• Use appropriate HTTP methods for different operations.
• Secure APIs using authentication mechanisms such as JWT or OAuth.

Authentication APIs

Music APIs

Playlist APIs

User APIs

Sample Request

POST /api/v1/playlists

{

"userId": "user_101",

"playlistName": "My Favorites",

"description": "My favorite songs collection"

}

Sample Response

{

"playlistId": "playlist_567",

"name": "My Favorites",

"status": "created",

"timestamp": "2026-07-20T10:30:45Z"

}

8. Low Level Design

The Low-Level Design (LLD) describes the internal structure of the Spotify system by defining the key classes, their responsibilities, and their interactions. It helps organize the application into modular and maintainable components.

Core Classes

The Spotify system can be designed using the following core classes:

• User: Manages user profile information, subscription details, preferences, and listening history.
• Song: Stores song information such as title, duration, genre, artist, album, and streaming URL.
• Artist: Represents music artists and manages artist-related information, albums, and songs.
• Album: Stores album information and maintains the collection of songs belonging to an artist.
• Playlist: Manages user-created playlists and allows adding, removing, and organizing songs.
• StreamingService: Handles music playback, buffering, and streaming requests.
• SearchService: Processes search requests for songs, artists, albums, and playlists.
• RecommendationService: Generates personalized music recommendations based on user listening history and preferences.
• NotificationService: Sends notifications about new releases, playlist updates, subscription reminders, and recommendations.
• Media: Manages audio file metadata and album cover information.

SOLID Principles

The Spotify system follows SOLID principles to keep the code modular, maintainable, and easy to extend.

• Single Responsibility Principle (SRP): Each class or service has a single responsibility. For example, the StreamingService handles music playback, while the RecommendationService is responsible only for generating personalized recommendations.
• Open/Closed Principle (OCP): New media types such as songs, podcasts, or audiobooks can be added without modifying the existing streaming logic.
• Liskov Substitution Principle (LSP): Different media types (Song, Podcast, Audiobook) can be used wherever a generic Media object is expected.
• Interface Segregation Principle (ISP): Services expose only the methods they require, preventing classes from depending on unnecessary functionality.
• Dependency Inversion Principle (DIP): High-level services depend on abstractions rather than concrete implementations, making it easier to replace components such as databases, caches, recommendation engines, or streaming providers.

Design Patterns

The following design patterns can be used in the Spotify system:

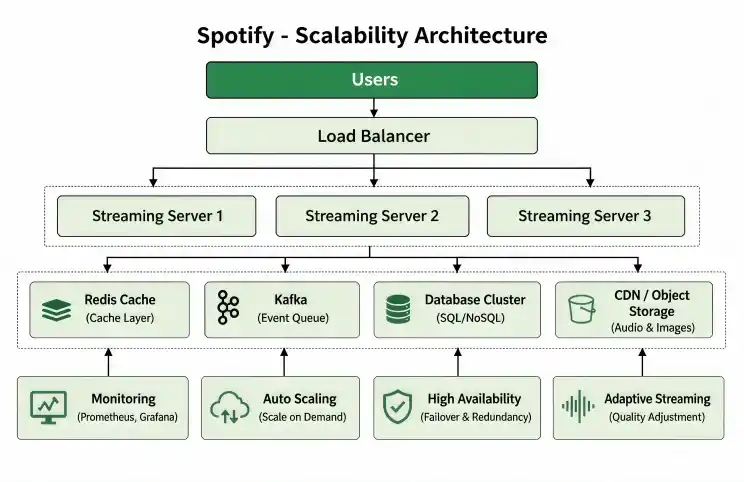

9. Scalability & Performance

Scalability and performance ensure that the Spotify system can handle millions of concurrent users while maintaining low latency, high availability, and uninterrupted music streaming.

• Caching: Redis Cache stores frequently accessed data such as user sessions, song metadata, trending songs, playlists, and recommendations to reduce database queries and improve response time.
• Load Balancing: A Load Balancer distributes incoming requests across multiple Streaming, Music, Search, and API servers, preventing overload and ensuring high availability.
• Database Replication: Database replication creates multiple copies of user data, playlists, and song metadata to improve read performance and provide fault tolerance during server failures.
• Database Sharding: Sharding distributes user data, playlists, and listening history across multiple database servers, allowing the system to scale horizontally as the number of users and songs increases.
• Asynchronous Processing: Kafka or other message queues process listening history, recommendation updates, analytics, notifications, and background tasks asynchronously, reducing response time for users.
• Horizontal Scaling: Additional Streaming Servers, Music Services, Search Services, and Recommendation Services can be added dynamically to handle increasing traffic without affecting existing users.
• CDN: A Content Delivery Network (CDN) caches audio files, podcasts, and album images closer to users, enabling faster music streaming and reducing playback latency across different regions.
• Rate Limiting: Rate limiting prevents excessive requests from a single user or device, protecting the system from abuse, excessive API usage, and denial-of-service attacks.
• Adaptive Streaming: The Streaming Service automatically adjusts audio quality based on network bandwidth and device capabilities, ensuring smooth playback with minimal buffering.
• Search Optimization: Search indexes (such as Elasticsearch) enable fast and efficient searching of millions of songs, artists, albums, and playlists with low latency.

10. Bottlenecks & Improvements

This section discusses the potential challenges the Spotify system may face at scale and the techniques used to overcome them while maintaining high availability, low latency, and uninterrupted music streaming.

• Identify common bottlenecks that can affect system performance.
• Apply suitable techniques to improve reliability, scalability, and fault tolerance.

Common Bottlenecks

As the number of users, songs, and streaming requests grows, the Spotify system may encounter several bottlenecks that can impact performance and availability.

• Single Point of Failure (SPOF): A failure in a single server can interrupt music streaming services. Use redundancy, replication, and failover mechanisms to eliminate SPOFs.
• Database Bottleneck: A single database server may struggle under heavy read/write traffic for user data, playlists, and listening history. Database replication and sharding help distribute the load.
• Cache Misses: Frequent cache misses increase database queries and response time when fetching song metadata, playlists, or recommendations. Optimizing cache policies improves performance.
• Streaming Server Overload: A large number of concurrent users streaming songs can overload streaming servers. Horizontal scaling and load balancing help distribute streaming requests efficiently.
• Message Queue Backlog: During traffic spikes, user activity events such as song plays, likes, and recommendations may accumulate in Kafka. Partitioning topics and adding more consumers help process events faster.
• Search Performance: Searching millions of songs, artists, and albums can become slow without proper indexing. Optimized search indexes and distributed search clusters improve query performance.
• CDN Cache Misses: If audio files are not cached at edge locations, users may experience higher latency and buffering. Increasing CDN cache coverage reduces content delivery delays.

Possible Improvements

The following techniques can further improve the scalability, reliability, and overall performance of the Spotify system.

• Auto Scaling: Automatically add or remove Streaming Servers, Search Services, and API servers based on traffic demand.
• Failover Mechanism: Redirect user requests to healthy servers or replica databases if a service fails, ensuring uninterrupted music playback.
• Retry Mechanism: Retry failed streaming requests, playlist updates, or background processing tasks to improve reliability.
• Geo-Distributed Deployment: Deploy services, databases, and CDNs across multiple regions to reduce streaming latency for users worldwide.
• Monitoring & Alerting: Continuously monitor server health, streaming quality, API performance, and infrastructure metrics using tools such as Prometheus and Grafana, and trigger alerts for failures or unusual traffic patterns.
• Adaptive Bitrate Streaming: Dynamically adjust audio quality based on the user's network bandwidth to minimize buffering and provide a smooth listening experience.
• Recommendation Optimization: Periodically retrain recommendation models using the latest user activity and listening history to provide more accurate and personalized music suggestions.
